Product Detail

Overview

General Specification Table

General Specification
Material:	PBT/PA9T/UL94/Brass/Phosphor Bronze
Insulation O.D	1.60mm(Max)
Withstanding Voltage:	1000V AC / minute
Temperature Range:	-40℃~+105℃
Contact Resistance:	20mΩ Max
Insulation Resistance:	1000MΩ Min
Product Plating	Gold flash/Tin over Nickel

Package Specification

Package-spec_KR2545.pdf

Specification

PS-KR2545-01.pdf

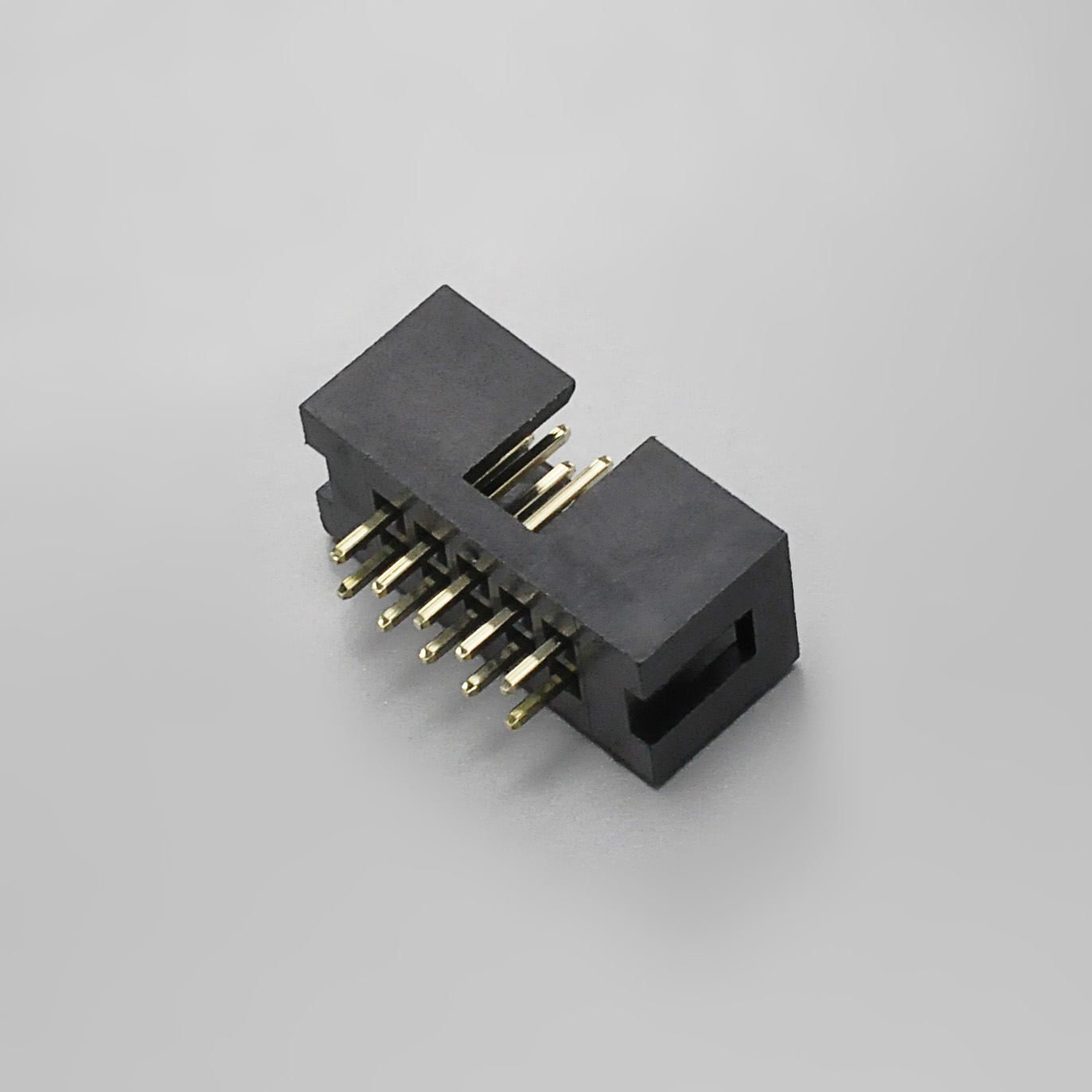

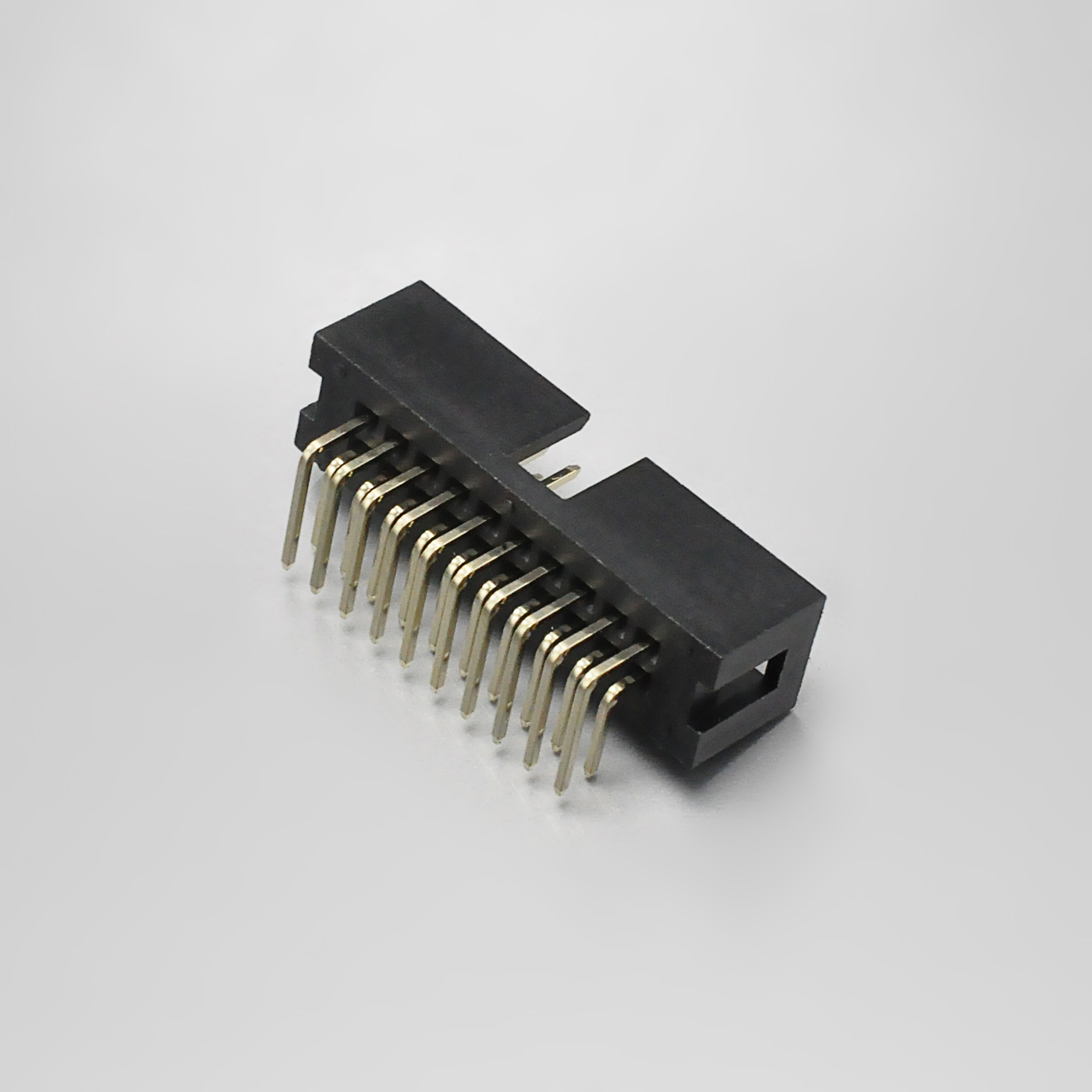

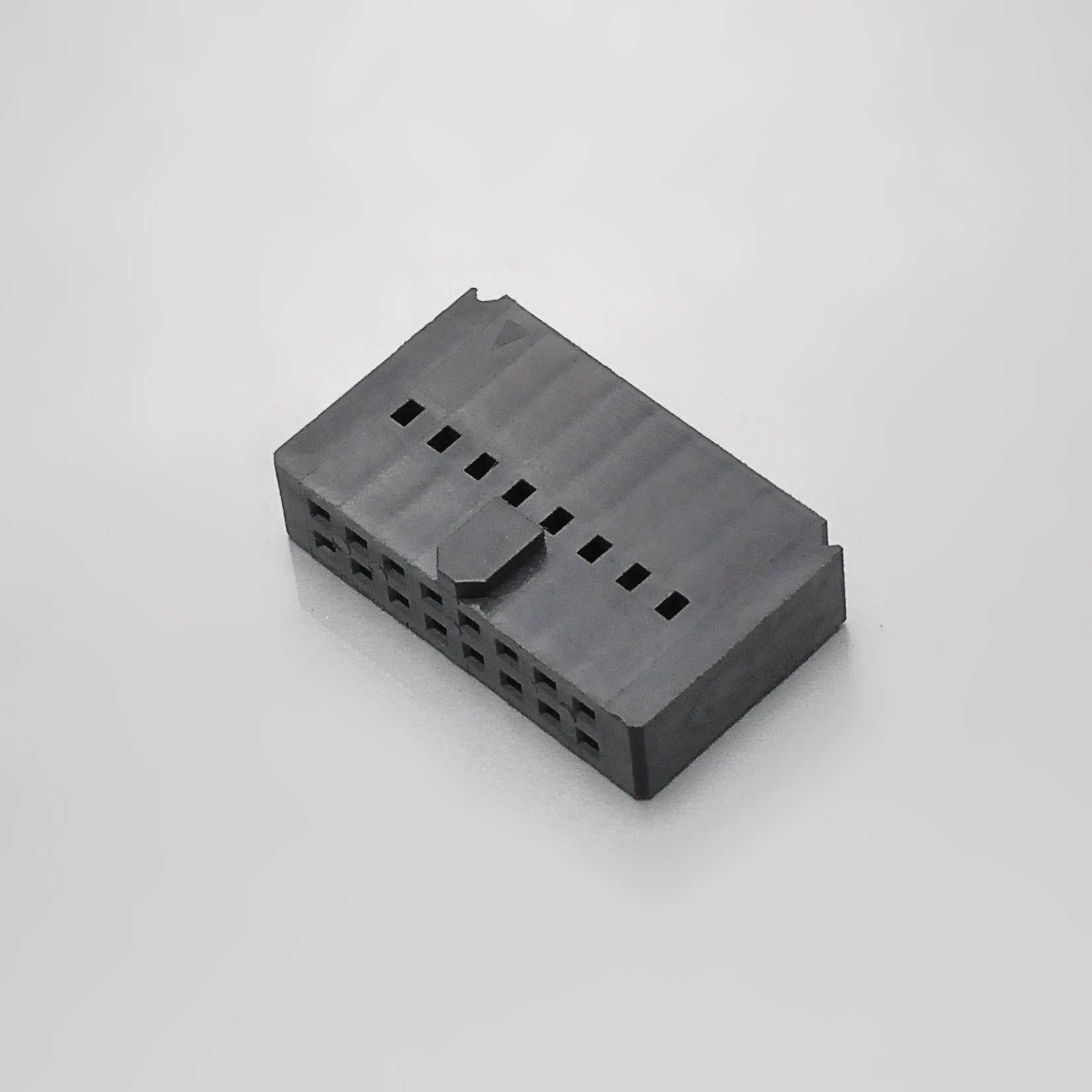

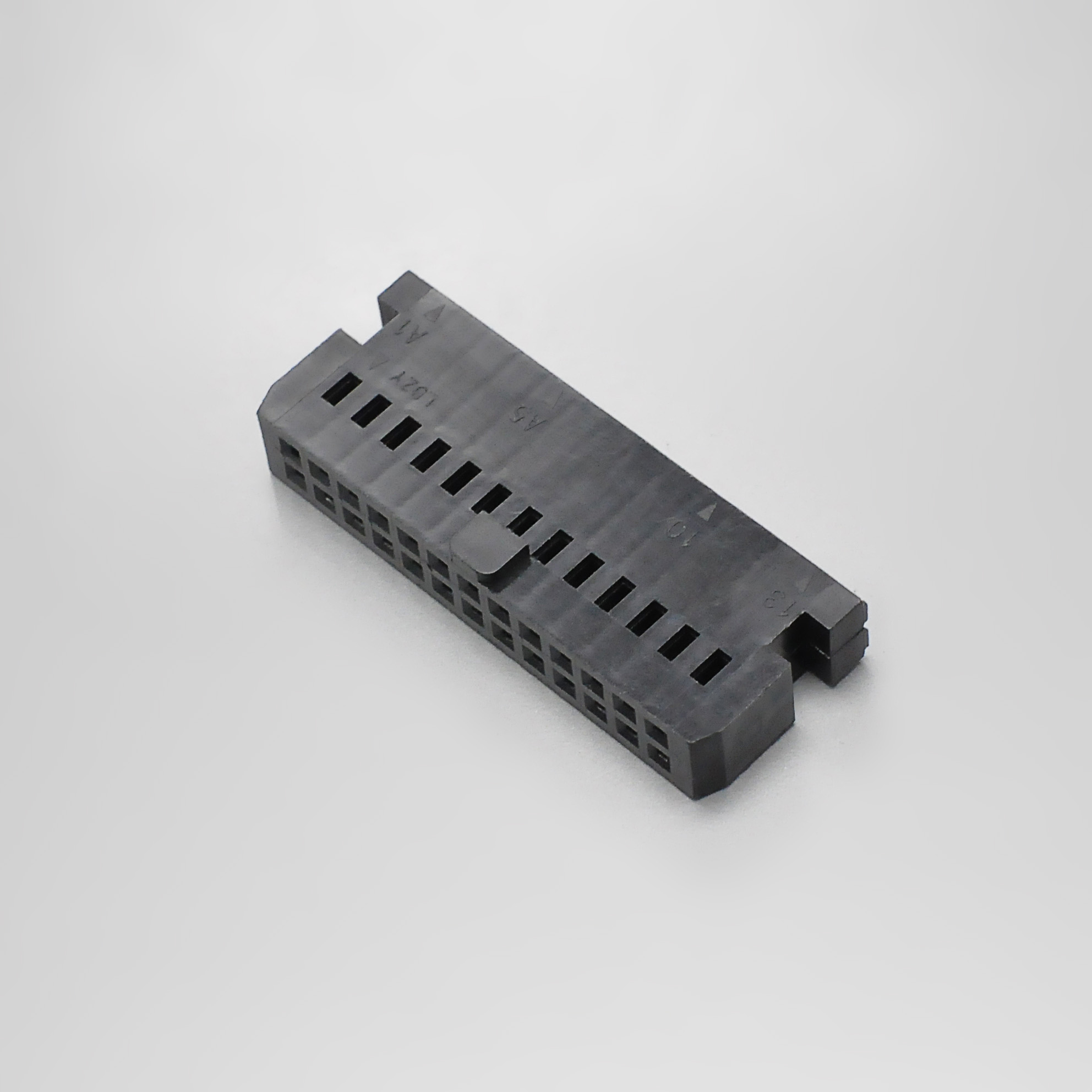

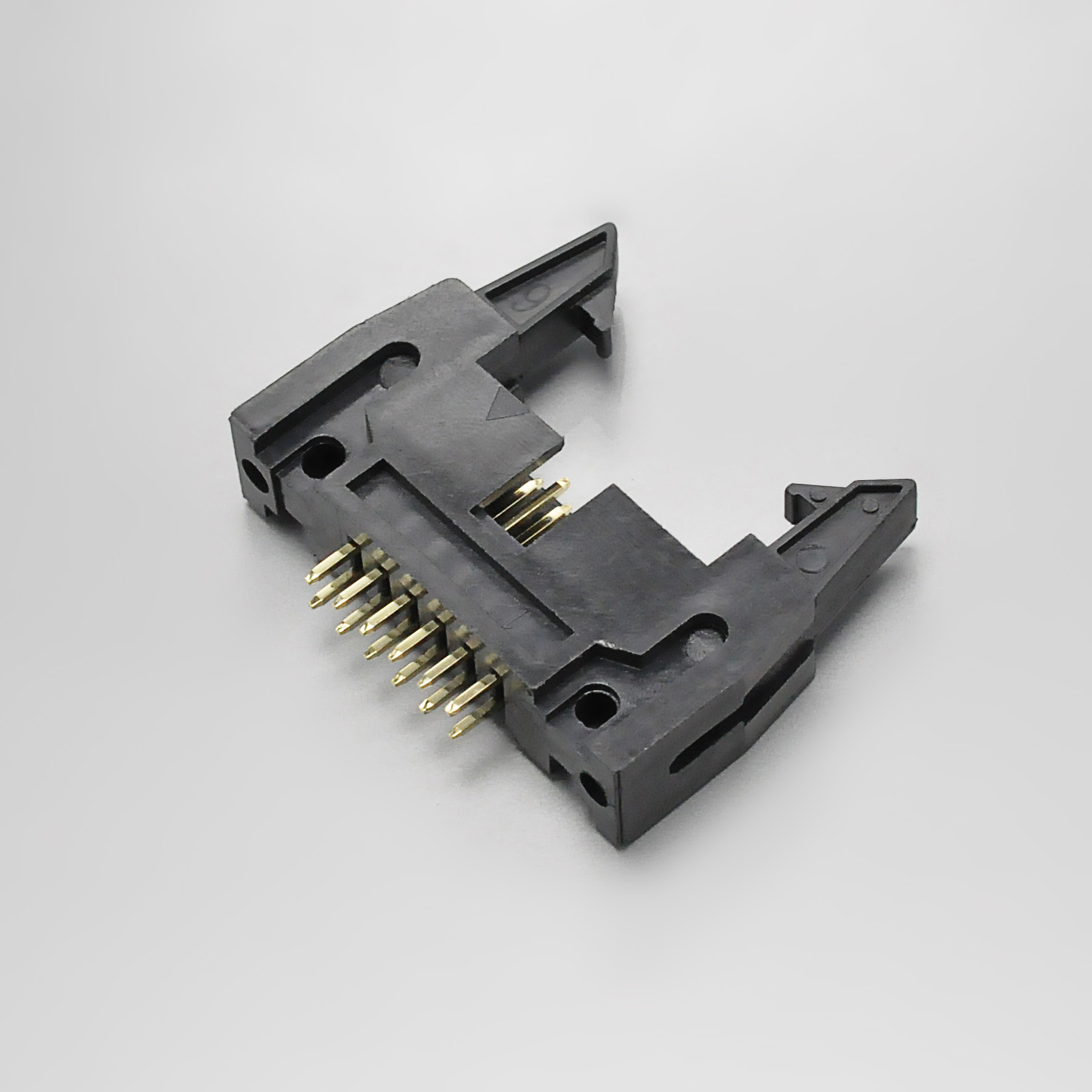

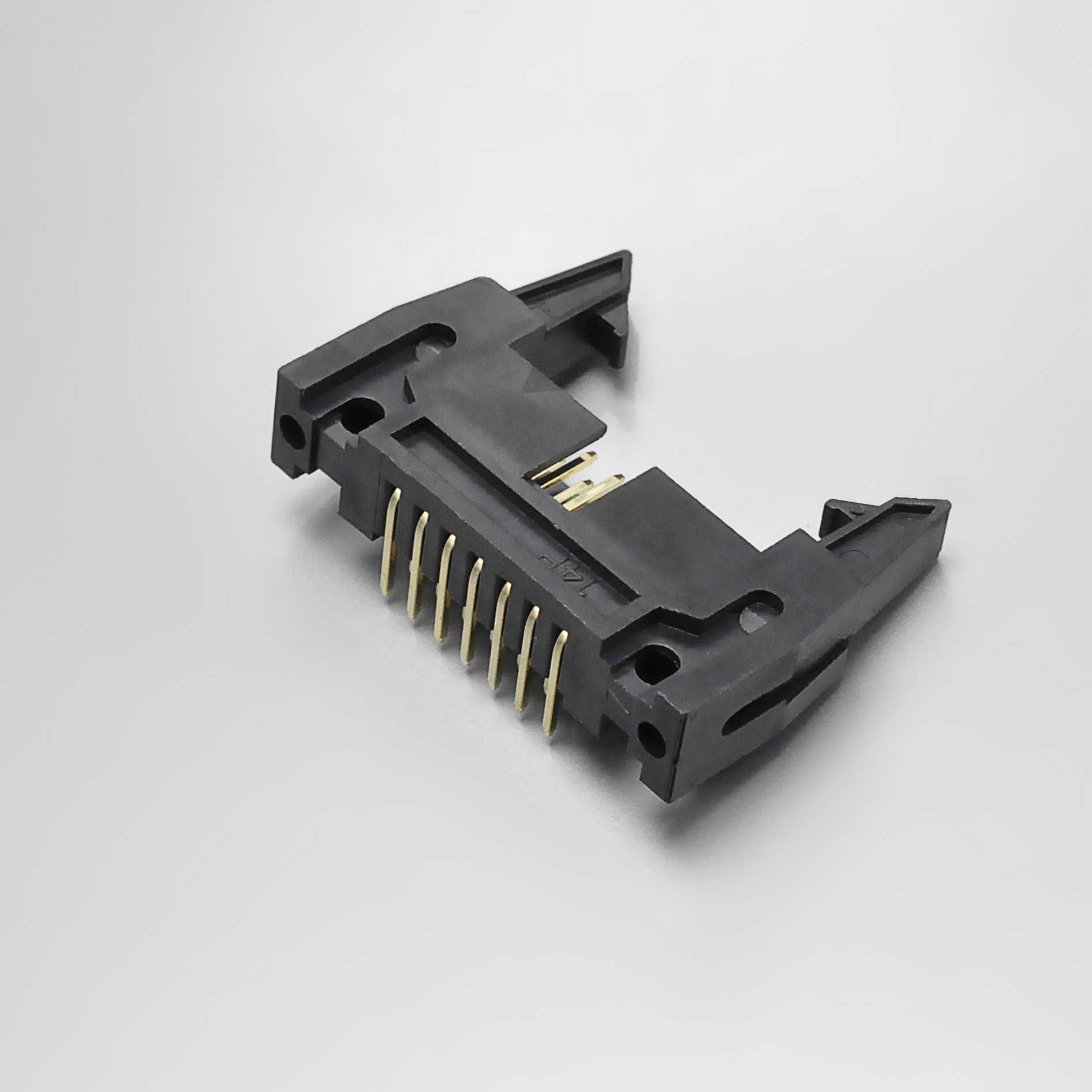

KR2545 Series Connectors

The KR2545 series connectors boast a comprehensive set of specifications, including a current rating of 3A and a voltage rating of 250V. They can reliably operate within a temperature range of -40°C to +105°C, maintaining a maximum contact resistance of 20mΩ and a minimum insulation resistance of 1000MΩ. Furthermore, they are capable of withstanding high voltages up to 1000V AC/min. These impressive parameters ensure that the KR2545 series connectors provide dependable, high-performance electrical connections for a wide variety of applications.

The KR2545 series connectors are a paragon of reliability, having received UL and other certifications for numerous applications. Their robust construction, mis-insertion prevention mechanism, and compatibility with specific cables make them the top choice for engineers seeking a dependable connection solution.

Advantages

Standardized Pitch

Designed with a standardized pitch of 2.54mm, this connector is compatible with various board and connector layouts, significantly enhancing design flexibility and versatility.

High Performance

The KR2545 series connectors excel in electrical performance, featuring high current ratings, low contact resistance, and high insulation resistance, ensuring stable signal transmission and high-quality electrical connections.

High Environmental Adaptability

With a wide operating temperature range of -40°C to +105°C, this connector can adapt to various extreme environments, ensuring stable performance under diverse operating conditions.

High Reliability

The KR2545 series connectors are crafted from high-quality materials and precision-manufactured to ensure high reliability and a long service life, reducing equipment failure rates and maintenance costs.

Easy Installation

The connector's straightforward design facilitates quick and easy installation, improving production efficiency.

Maintainability

The connector is easy to disassemble and replace, simplifying maintenance by allowing for the quick replacement of new connectors when needed, thereby reducing maintenance difficulty and costs.

In summary, the KR2545 Series Box Header 2.54 Wire-to-Wire Connector is widely utilized in the field of electronic equipment due to its standardized pitch, high performance, environmental adaptability, high reliability, easy installation, and good maintainability.
