Product Detail

Overview

General Specification

Material:	PA6T+30%GF/UL94V-0/Brass
Withstanding Voltage:	500V AC/ minute
Temperature Range:	-40℃~+105℃
Contact Resistance:	20mΩ/max
Insulation Resistance:	1000MΩ/ min
Product Plating:	Gold flash

Component Specifications

Select Components

Dual Row DIP Right Angle Pin Header

Series Drawing

KR2542-Series-Drawing (1).pdf

Part Name	Pin Header
Pitch	2.54mm
Series	KR2542
Current	3A

▌ Product Type
Category	Wire to Board
Assembly Type	Header
Pitch	2.54mm
Product Series	KR2542 Series
▌ Configuration Features
Number of Rows	2
Number of Positions	2 * 7P
▌ Electrical Characteristics
Operating Voltage (AC/DC)	250V
Current (Max)	3A
Contact Resistance	20mΩ Max
Insulation Resistance	1000MΩ Min
▌ Physical Characteristics
Housing Material	PA6T+30%GF, UL94V-0
Color	Black
PIN Material	Brass
PIN Plating	Gold flash over Nickel
Wire/Cable Size (AWG)	22#-28#
▌ Operating Environment
Operating Temperature Range	-40°C ~ +105°C
▌ Industry Standard
UL	E482542

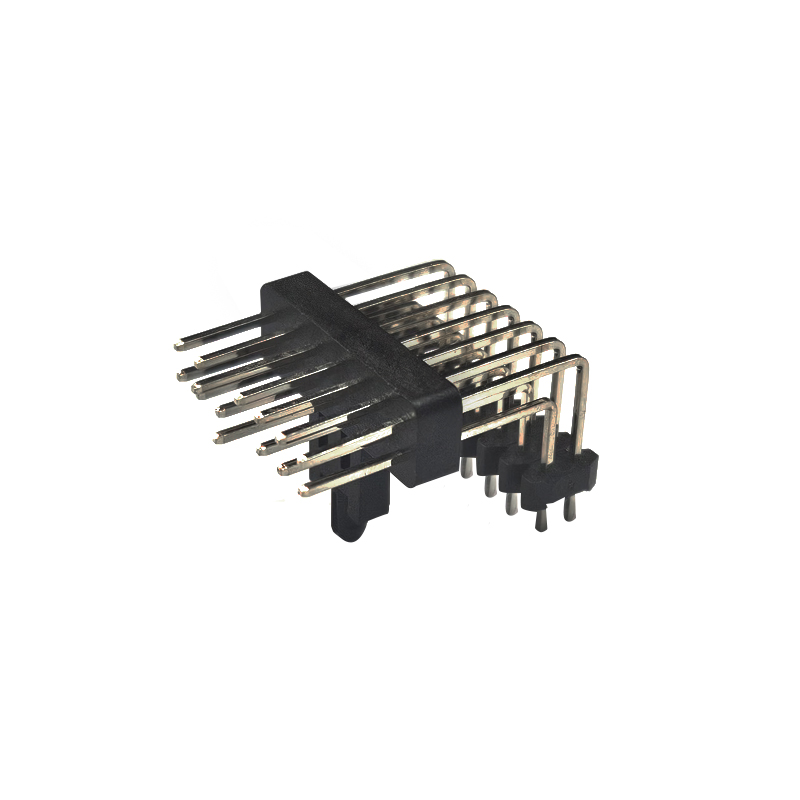

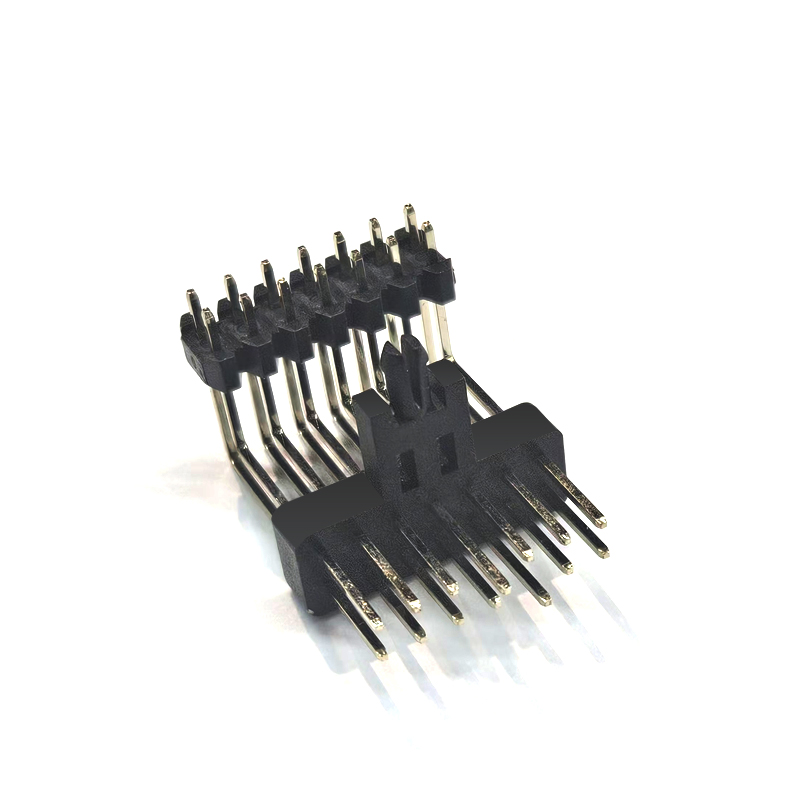

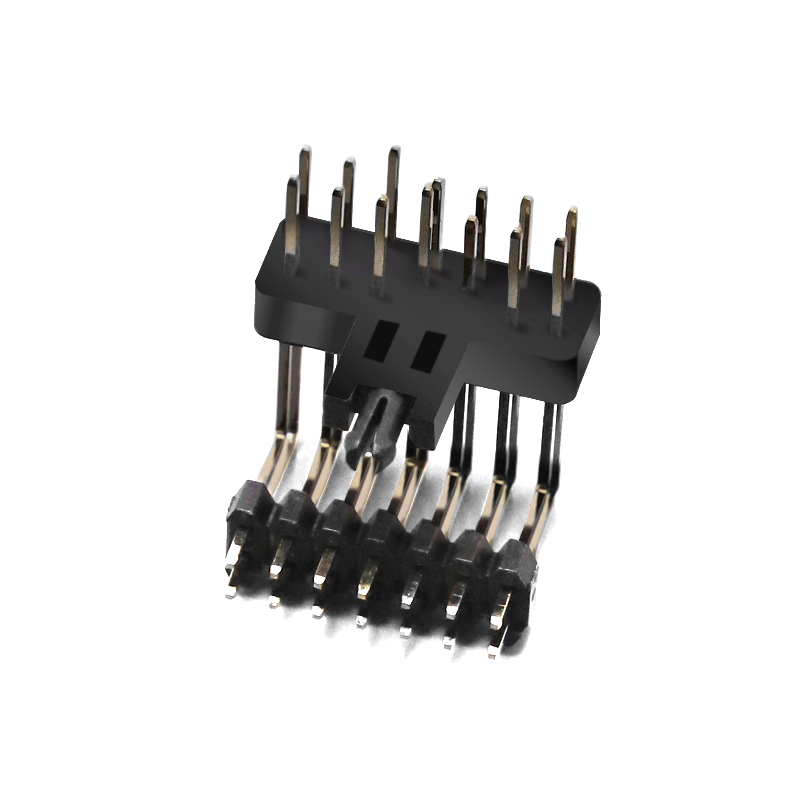

KR2542 Series Dual Row DIP Right Angle Pin Header

KR2542 Series Dual Row DIP Right Angle Pin Header H=2.5

The KR2542 Series Dual Row DIP Right Angle Pin Header H=2.5 is a high performance connector designed for PCB board-to-board connections. Its dual row right angle design saves space and its 2.5mm height accommodates a wide range of mounting requirements. The double-plastic band post structure enhances the stability and durability of the connection, and is suitable for a variety of electronic devices that require high reliability and easy maintenance.

Advantages

Space-saving

Its design allows the connector to better fit the PCB board surface during installation, effectively reducing the occupied space, which is particularly important for electronic equipment with limited space.

High stability

The structure of the double plastic tape column not only enhances the overall strength of the connector, but also improves the stability of the connection with the PCB board, reducing the risk of loosening or falling off due to vibration or shock.

Strong durability

The material and manufacturing process of this product usually have high quality requirements to ensure that the connector can maintain good performance and durability over a long period of time and high-frequency use.

Easy to install and maintain

The right-angle design makes the connector easier to install, while the structure of the double-plastic band post also facilitates subsequent maintenance and replacement work.

Wide range of applications

Due to its excellent performance and stability, the product is widely used in automotive, household appliances, industrial equipment, lighting systems and medical equipment.
