Product Detail

Overview

产品规格表

General Specification

General Specifaction
Material:	PA6T/UL94V - 0/Brass
Withstanding Voltage:	500V AC / minute
Temperature Range:	-40℃~+105℃
Contact Resistance:	20mΩ/max
Insulation Resistance:	1000MΩ/min
Product Plating:	Gold flash

Component Specifications

Select Components

Dual Row SMT Straight Female Header

Series Drawing

KR2542-Series-Drawing (1).pdf

Part Name	Female Header
Pitch	2.54mm, 3.54mm
Series	KR2542
Current	3A

▌ Product Type
Category	Wire to Board
Assembly Type	Female Header
Pitch	2.54mm
Product Series	KR2542 Series
▌ Configuration Features
Number of Rows	2
Number of Positions	2 * 3P ~ 2 * 30P
▌ Electrical Characteristics
Operating Voltage (AC/DC)	250V
Current (Max)	3A
Contact Resistance	20mΩ Max
Insulation Resistance	1000MΩ Min
▌ Physical Characteristics
Housing Material	PA6T, UL94V-0
Color	Black
PIN Material	Phosphor Bronze
PIN Plating	Gold Flash
Wire/Cable Size (AWG)	22#-28#
▌ Operating Environment
Operating Temperature Range	-65°C ~ +125°C
▌ Industry Standard
UL	E482542

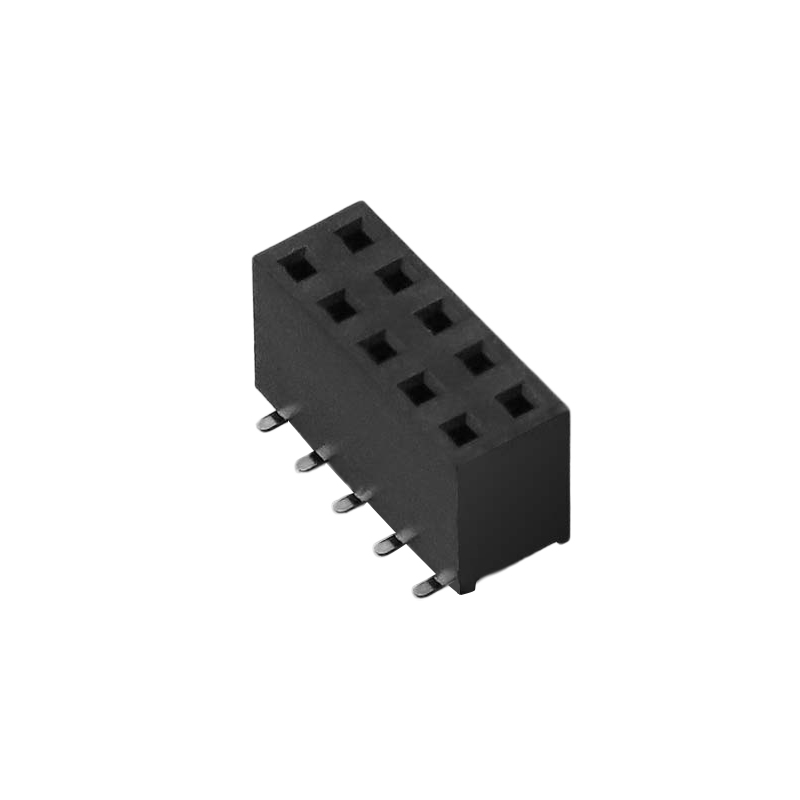

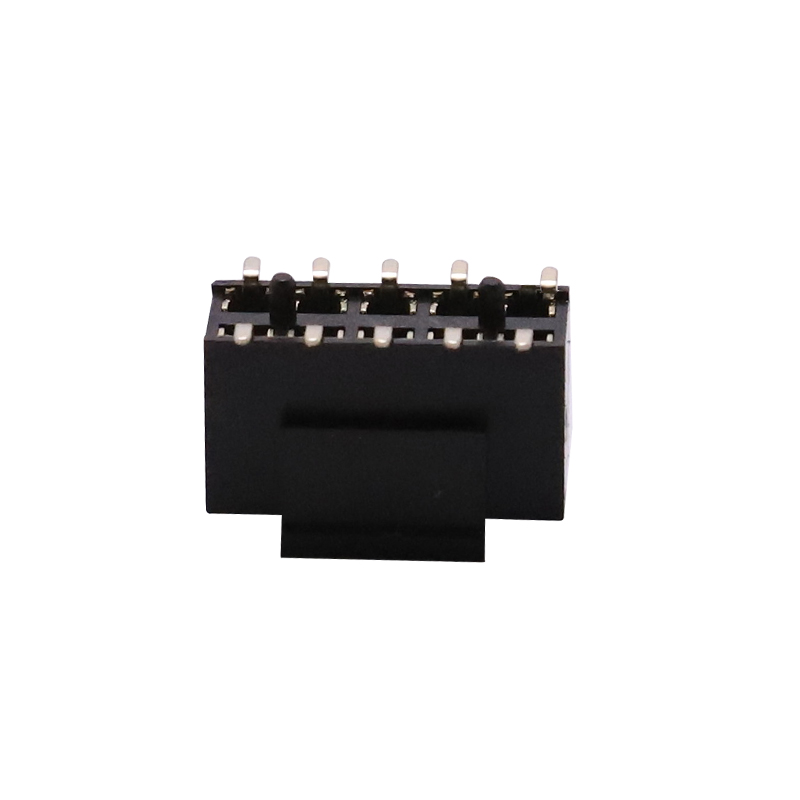

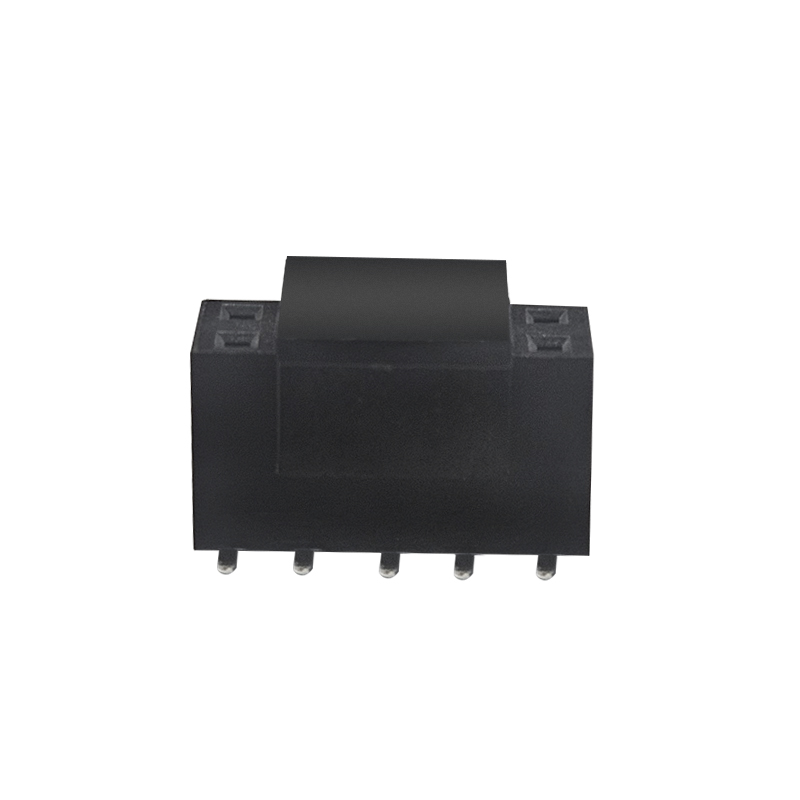

KR2542 Series Dual Row SMT Straight Female Header

KR2542 Series Dual Row SMT Straight Female Header, with a height of 7.1mm, is designed for high performance electronics and incorporates various PCB layouts. Its high current load, low contact resistance, and high insulation resistance ensure signal stability and accuracy. Phosphor bronze contacts are gold plated for corrosion resistance and high conductivity. Operating temperature -40°C to +105°C, adaptable. Ideal for PCB design and manufacturing, supporting the stable operation of electronic products.

Advantages

High-performance connection

Its inline design ensures a solid and reliable connection to the PCB board, providing good electrical conduction performance, helping to minimize signal loss and improve overall system operation efficiency.

Highly adaptable

The dual row pin layout increases the number of connection points, making the connector suitable for use in complex circuit designs that require high-density pin connections, while the 7.1mm height facilitates compatibility and layout with other components.

High-quality materials

The use of phosphor bronze as the contact material not only ensures good electrical conductivity, but also has high wear and corrosion resistance, extending the service life of the connector. Meanwhile, the optional gold-plated surface treatment further enhances its oxidation and corrosion resistance.

Wide Operating Temperature Range

Supporting a wide operating temperature range from -40°C to +105°C, the connector is able to work stably in a variety of extreme environments to meet the needs of a wide range of industrial applications.

Easy Installation and Maintenance

The KR2542 Series connectors can be automated during the installation process, greatly improving productivity. At the same time, its standardized design also facilitates subsequent maintenance and replacement.

High Reliability

Through strict quality control and testing, the KR2542 Series connectors are able to maintain stable performance over long periods of time, reducing system downtime due to connector failure and improving overall system reliability.
