Product Detail

Overview

General Specification

Material:	PBT+20%GF/Phosphor Bronze
Withstanding Voltage:	500V AC/minute
Temperature Range:	-40℃~+105℃
Contact Resistance:	20mΩ/max
Insulation Resistance:	1000MΩ/min
Product Plating:	Tin flash over Nickel

Select Components

Single Row DIP Right Angle Header

Series Drawing

KR2542-Series-Drawing.pdf

Part Name	Header
Pitch	2.54mm
Series	KR2542
Current	3A

▌ Product Type
Category	Wire to Board
Assembly Type	Header
Pitch	2.54mm
Product Series	KR2542 Series
▌ Configuration Features
Number of Rows	1
Number of Positions	4P
▌ Electrical Characteristics
Operating Voltage (AC/DC)	250V
Current (Max)	3A
Contact Resistance	20mΩ Max
Insulation Resistance	1000MΩ Min
▌ Physical Characteristics
Housing Material	PBT + 20% GF
Color	Black
PIN Material	Phosphor Bronze
PIN Plating	Tin flash over Nickel
Wire/Cable Size (AWG)	22#-28#
▌ Operating Environment
Operating Temperature Range	-40°C ~ +105°C
▌ Industry Standard
UL	E482542

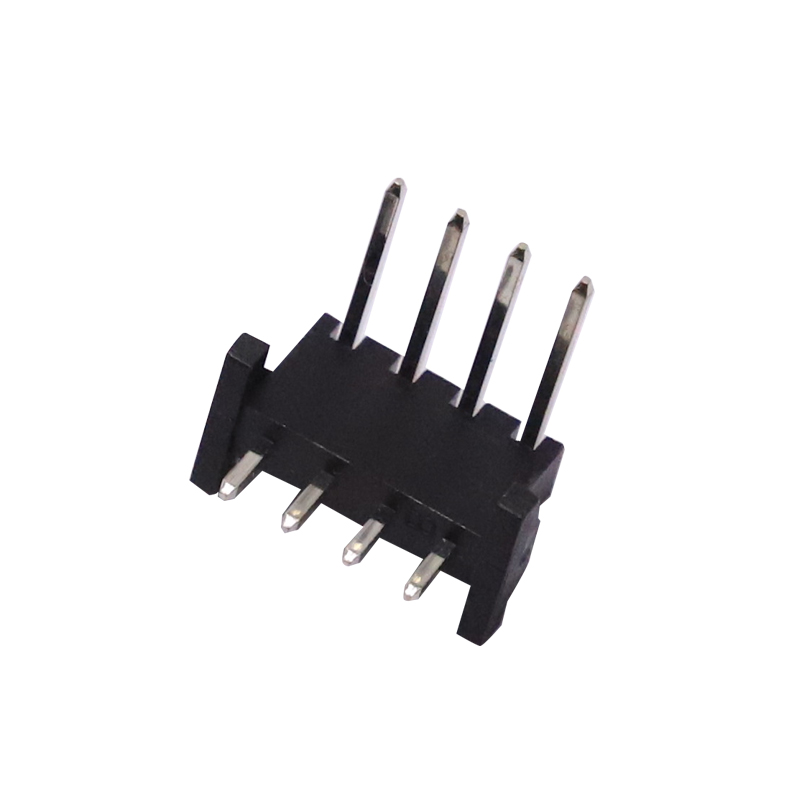

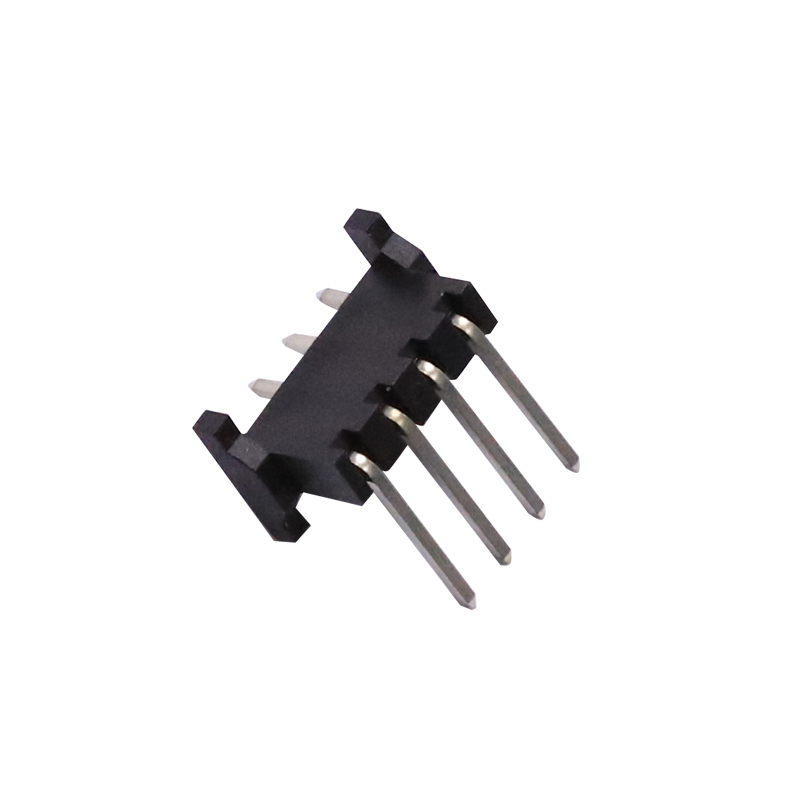

KR2542 Series Single Row DIP Right Angle Pin Header H=6.38

The KR2542 Series Single Row DIP Right Angle Pin Header H=6.38 is a high performance connector designed for PCBs. It is available in a single row DIP package with right angle pins for easy board layout and routing. The pin pitch of 2.54mm meets industry standards and is easily compatible with other components. Its height of 6.38mm ensures stability and reliability during installation. This series of connectors is suitable for a variety of application scenarios, such as automotive electronics, communication equipment, consumer electronics, etc. It can meet the needs of different industries for high-quality connectors. KR2542 Series has become one of the most favored products in the market with its excellent electrical performance and reliable mechanical performance.

Advantages

Standard Pitch Design

This series of connectors adopts 2.54mm pin pitch, which is the standard pitch widely used in the electronics industry, ensuring compatibility with most electronic components on the market, and facilitating users to choose and match in the design and production process.

Right-angle pin design

Its right-angle pin design not only saves space on the board, but also makes wiring more flexible and convenient. This design helps to realize a more compact board layout and enhance the integration and overall performance of the product.

Medium height

6.38mm height for the KR2542 series connectors to provide sufficient mounting stability and reliability. This height is neither too high to cause installation difficulties, nor too low to affect the solidity of the connection, thus ensuring the connector’s long-term stable operation.

Excellent electrical performance

KR2542 series connectors excel in electrical performance and can meet the needs of a variety of complex circuits. Its low impedance, high voltage resistance and other characteristics ensure the accuracy and stability of signal transmission, reducing the risk of signal attenuation and interference.

Reliable mechanical performance

This series of connectors also excels in mechanical performance. Its sturdy pin and shell design can withstand certain mechanical shock and vibration, to ensure that the connector in the harsh environment of stable work. In addition, its plugging and unplugging force is moderate, which makes it easy for users to connect and disconnect operations.

Wide range of application scenarios

Due to its excellent performance and reliability, KR2542 series connectors are widely used in automotive electronics, communication equipment, consumer electronics and many other fields. Whether for high-precision requirements of industrial equipment or for the compact size of portable devices, this series of connectors can provide reliable connection solutions.

In summary

KR2542 Series Single Row DIP Right Angle Pin Header H=6.38 has won wide recognition and application in the market by virtue of its standard pitch design, right angle pin design, moderate height, excellent electrical and mechanical properties and wide range of application scenarios.
