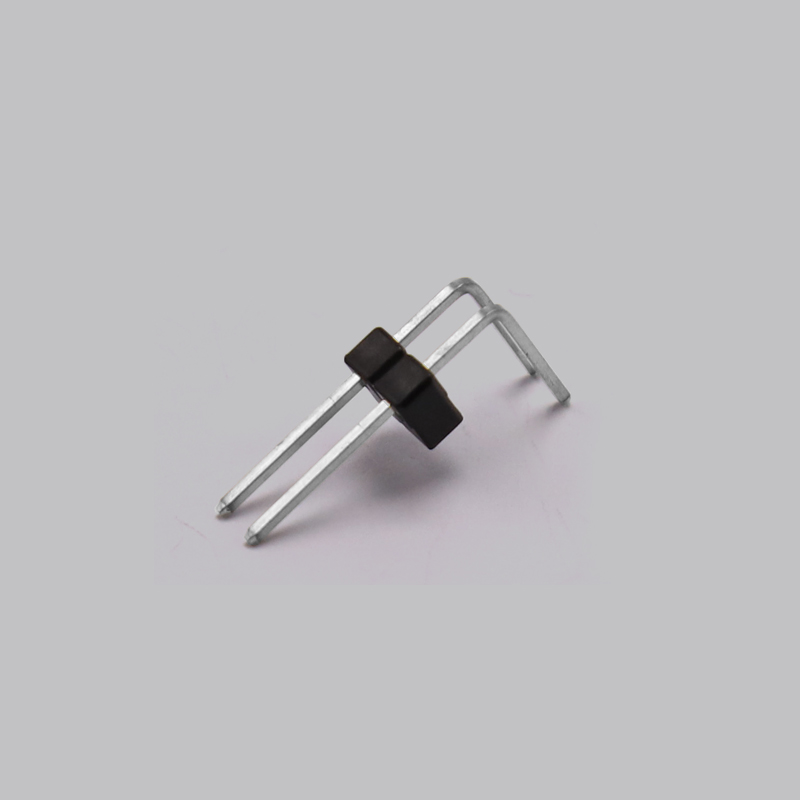

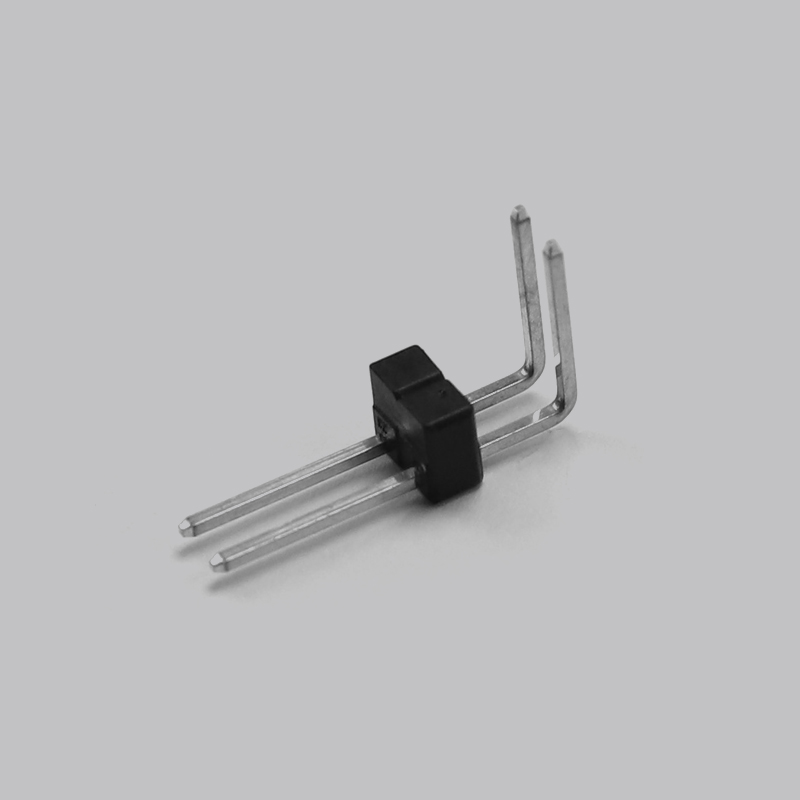

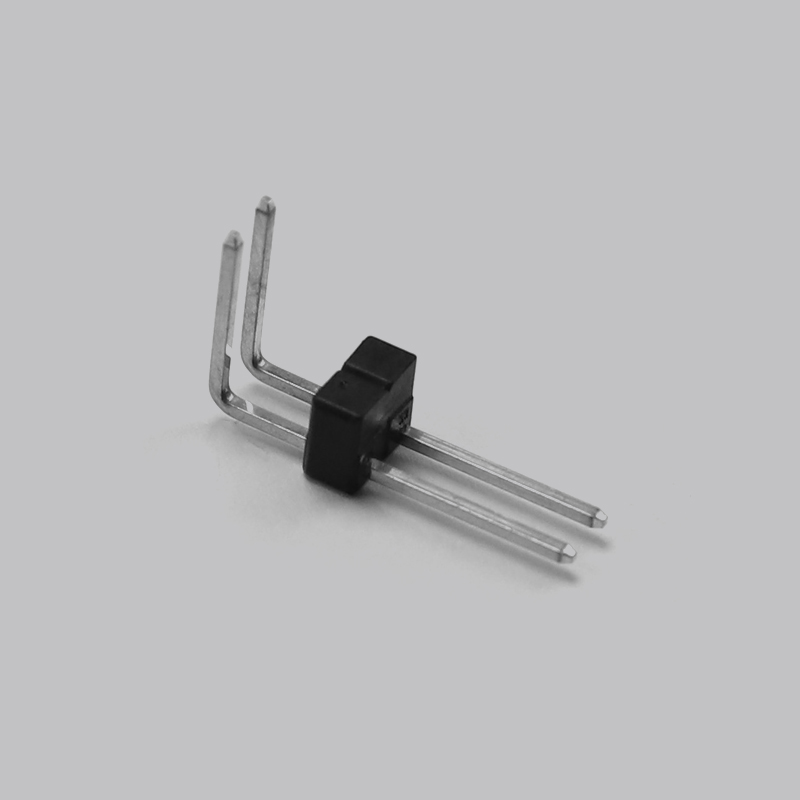

KR2552 Series 2.54mm Pitch SA3F 2Pin DIP Type Right Angle Header Wire to Board Connector

Short Description:

Wire to Board Connector, 2.54mm Pitch Header, Single Row, 2 Pin, DIP Type Wafer, Right-angle, 9.47mm Mating Pin Length, Bright Tin plated over Nickel, Black.

Pitch: 2.54mm
Circuits: 2pin
Current: 3A
Voltage: 250V

Send email to us Download as PDF

Product Detail

Overview

General Specification

Material:	PA9T UL 94V - 0/ H65
Single Needle Retention	8N MIN
Withstanding Voltage:	1000VAC/minute
Environmental requirement:	280℃±5℃ for 5 seconds
Contact Resistance:	10mΩ/max
Insulation Resistance:	1000MΩ/min
Product Plating:	Bright Tin plated over Nickel

KR2552 Series Connectors

KR2552 series connectors are 2.54mm pitch SA3F 2Pin DIP type right-angle wire-to-board connectors, supporting AC/DC 3A current and 250V voltage, meeting high insulation requirements (≥1000MΩ). It adopts PA9T UL 94V-0 insulator and H65 contact material, and the surface is bright Tin plated over Nickel to enhance corrosion resistance. Its single needle holding force ≥ 8N, salt spray test up to 48 hours, and can pass the 280 ℃ +5 ℃ high temperature test for 5 seconds, showing excellent environmental adaptability, suitable for harsh working conditions of the electrical connection needs.

Advantages

High electrical performance

Supporting up to 3A current and 250V voltage, it is suitable for a wide range of electrical equipment and systems, ensuring the stability and efficiency of signal and power transmission.

Excellent Insulation Performance

Adopting PA9T UL 94V-0 grade insulating material, it provides extremely high insulation resistance (≥1000MΩ), effectively preventing electrical leakage and short circuit, and safeguarding equipment safety.

Reliable single-pin retention force

The single-pin retention force reaches more than 8N, to ensure that the connector in the vibration or shock environment is still firmly connected, not easy to loosen or fall off.

Excellent Salt Spray Test Performance

The connector’s corrosion resistance in harsh marine environments or high humidity conditions is proven through a 48-hour salt spray test, making it suitable for a wide range of complex environments.

High-temperature resistance

Able to withstand high-temperature tests of up to 280°C+5°C for 5 seconds without damage, demonstrating excellent high-temperature resistance, suitable for electrical connections in high-temperature working environments.

Widely used

With its excellent performance and reliable quality, KR2552 series connectors are widely used in communications, automotive, industrial control, consumer electronics and other fields to meet the electrical connection needs of different industries.
