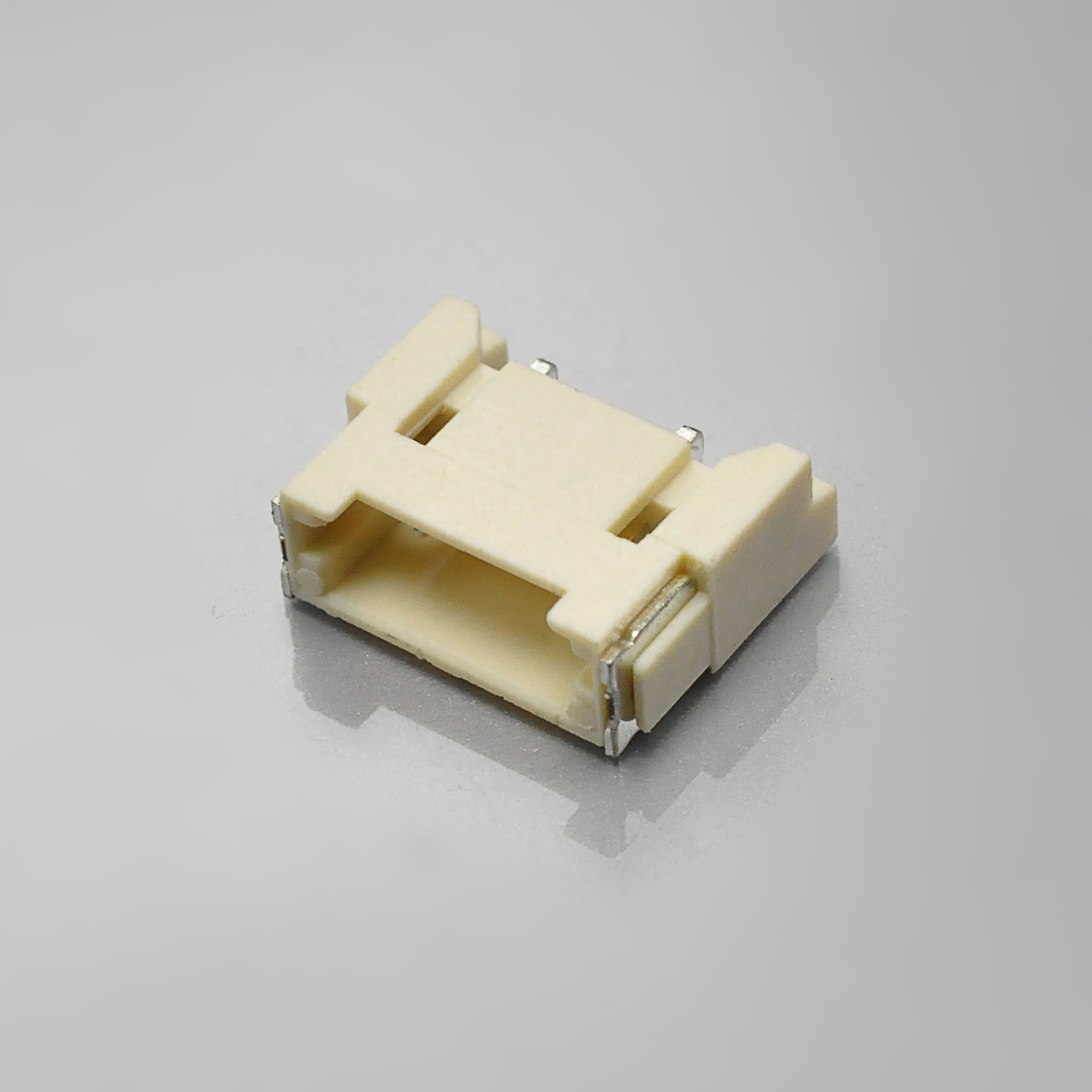

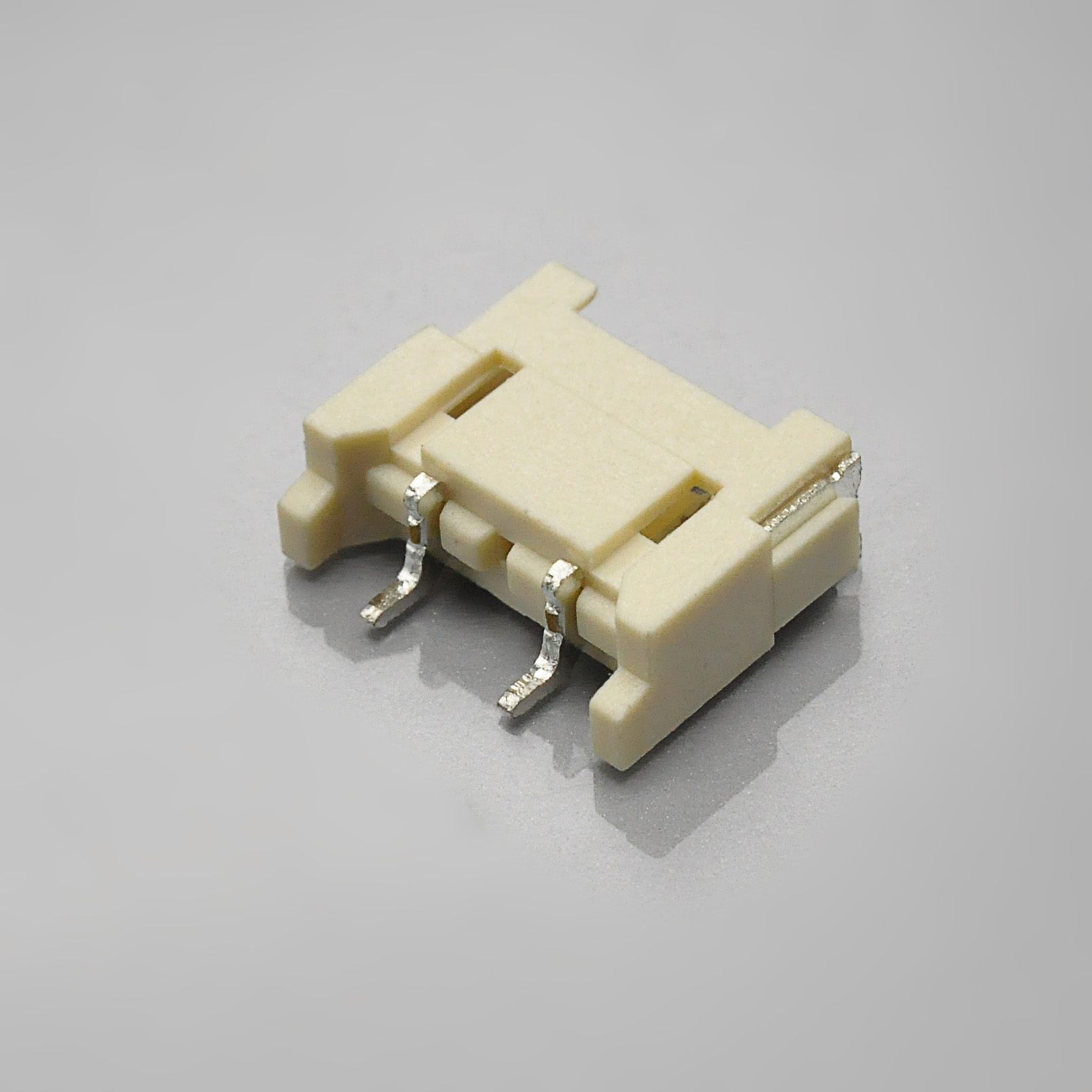

KR4000 Series BH 4.0 SMT Wire to Board Connector

Short Description:

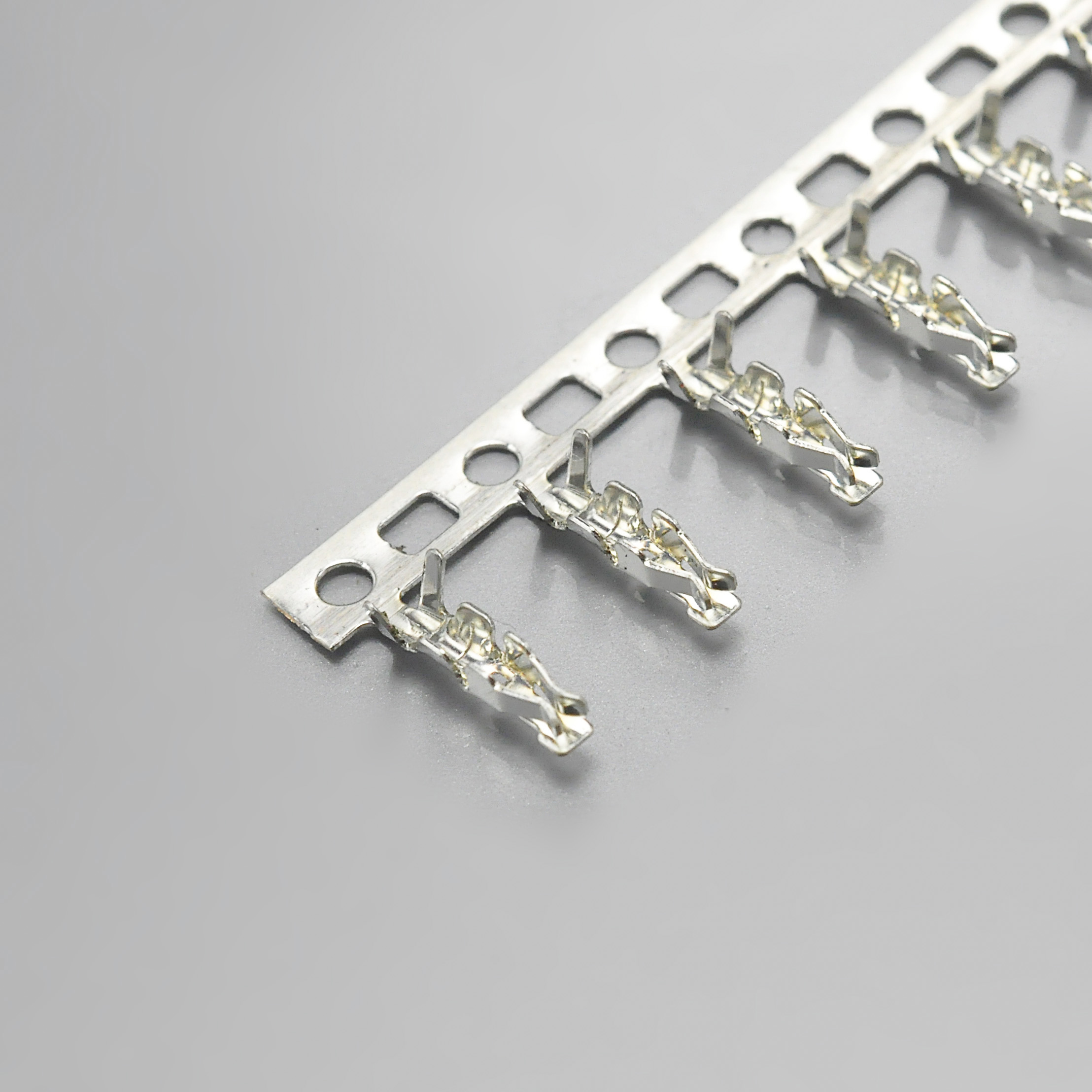

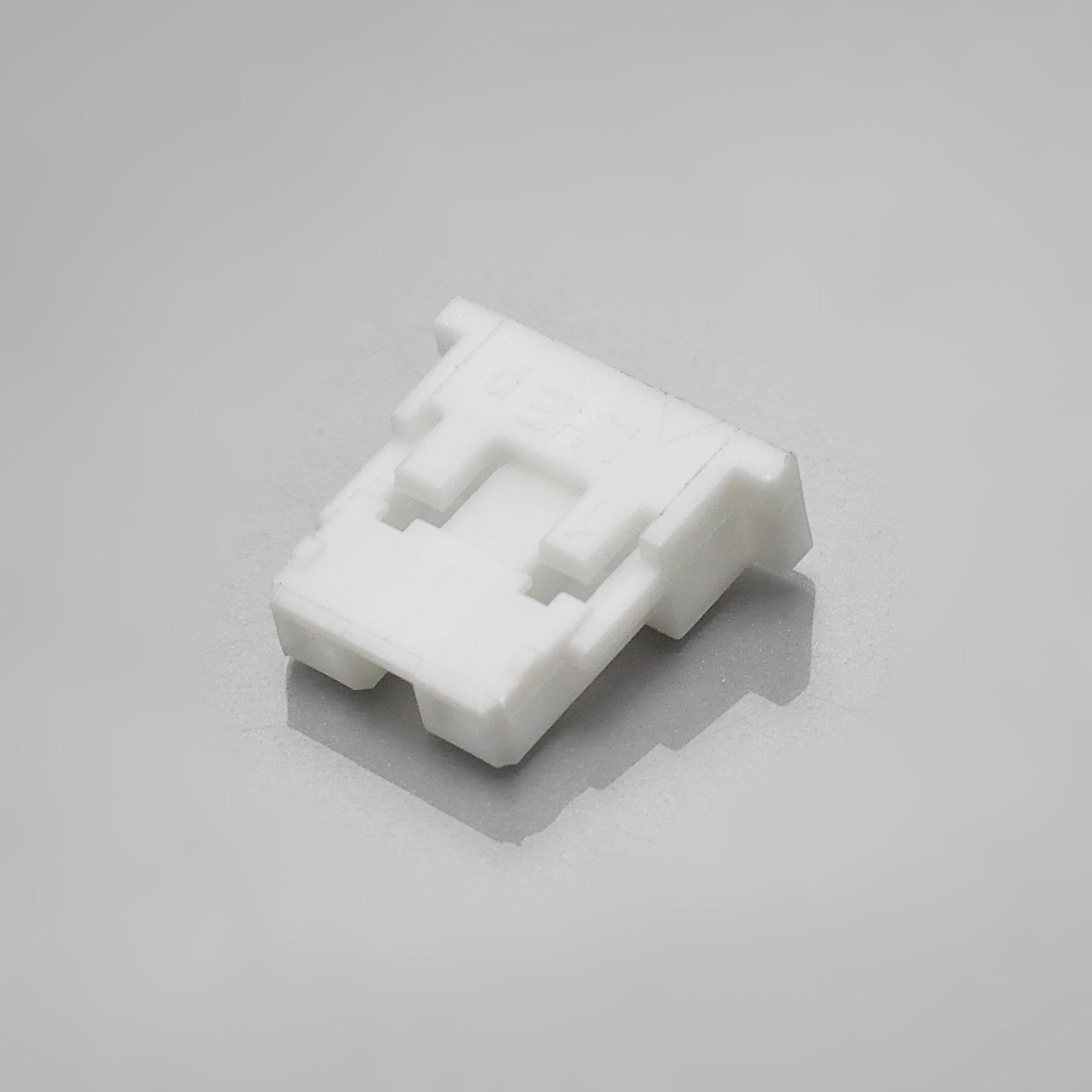

BH connector, SMT Wafer, low profile connectors with high withstanding voltage, designed for connecting liquid crystal display back light lamps to their starters. *SMT configuration *Its crimp style contact can be inserted into the housing with little force, thus making them suitable for use with flexible wires such as those insulated with silicone rubber.

Pitch: 4.00mm
Circuits: 2-5pin
Current: 1A
Voltage: 600V

Send email to us Download as PDF

Product Detail

Overview

General Specification

Material:	PA66/UL94/PA9T/Phosphor Bronze
Insulation O.D	0.9 to 1.4mm
Withstanding Voltage:	1800V AC/minute
Temperature Range:	-40°C~+105°C
Contact Resistance:	20mΩ Max
Insulation Resistance:	1000MΩ Min
Product Plating	Tin over Nickel

Package Specification

Package-spec_KR4000.pdf

Specification

PS-KR4000-01.pdf

KR4000 Series Connectors

The KR4000 series connector is a high-performance and high-reliability connector product. It adopts advanced design concepts and manufacturing processes, boasting excellent electrical and mechanical properties that can meet the needs of applications in a variety of complex environments.

KR4000 series connectors are widely used in new energy vehicles, new energy energy storage, industrial equipment, data centers, consumer electronics, and other fields, providing customers with high-quality connectivity solutions. The product has excellent durability, stability, and reliability, ensuring that the equipment maintains stable connection performance during long-term use. It is an indispensable part of all kinds of equipment.

The KR4000 series connectors have attracted much attention with their miniaturized design, high performance, reliability, and wide range of applications.

Advantages

High Performance Design

The use of advanced design concepts ensures excellent electrical and mechanical performance. Its unique structural design enables it to maintain stable performance in complex environments such as high-density connections, high shock, and vibration.

Wide Range of Applications

This series of connectors are widely used in new energy vehicles, new energy storage, industrial equipment, data centers, consumer electronics, and other fields, which can meet the diversified needs of connectors in different industries.

Flexible Configuration Options

A wide range of specifications and models are available, with flexible configuration options to meet the connection needs of different devices and systems.

In summary, the KR4000 series connectors, with their high performance, reliability, wide range of applications, and miniaturized design, have become a favored choice in the market. They are an ideal solution for various industries that require stable and efficient connectivity.
