Product Detail

Overview

General Specification Table

General Specification
Material:	PA66/UL94/Brass/Phosphor Bronze
Insulation O.D.:	1.2 to 1.6mm
Withstanding Voltage:	1000V AC / minute
Temperature Range:	-40℃~+105℃
Contact Resistance:	20 mΩ/max
Insulation Resistance:	1000M Ω / min
Product Plating:	Tin over Nickel

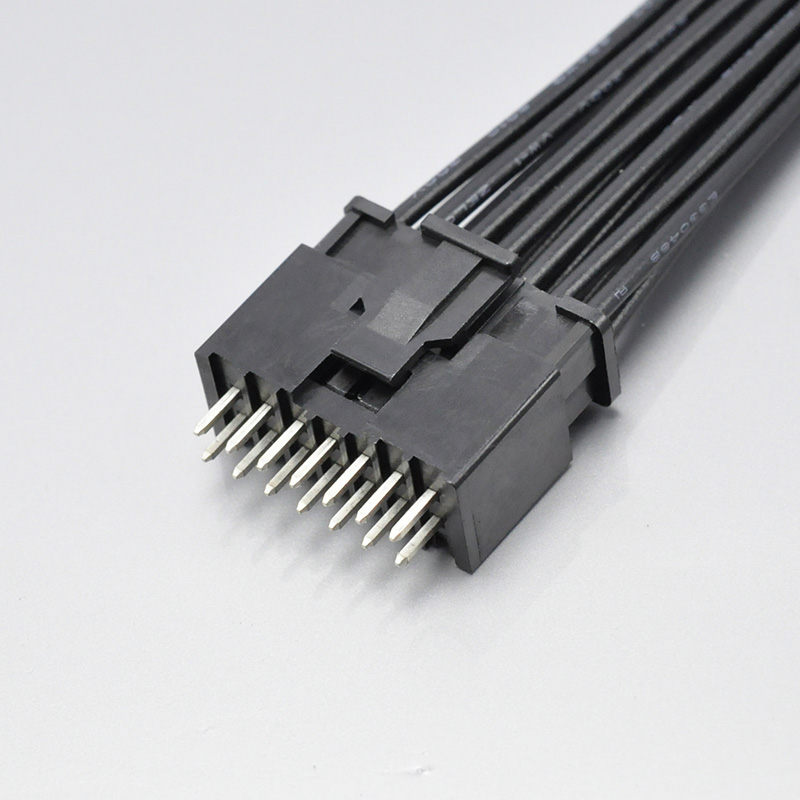

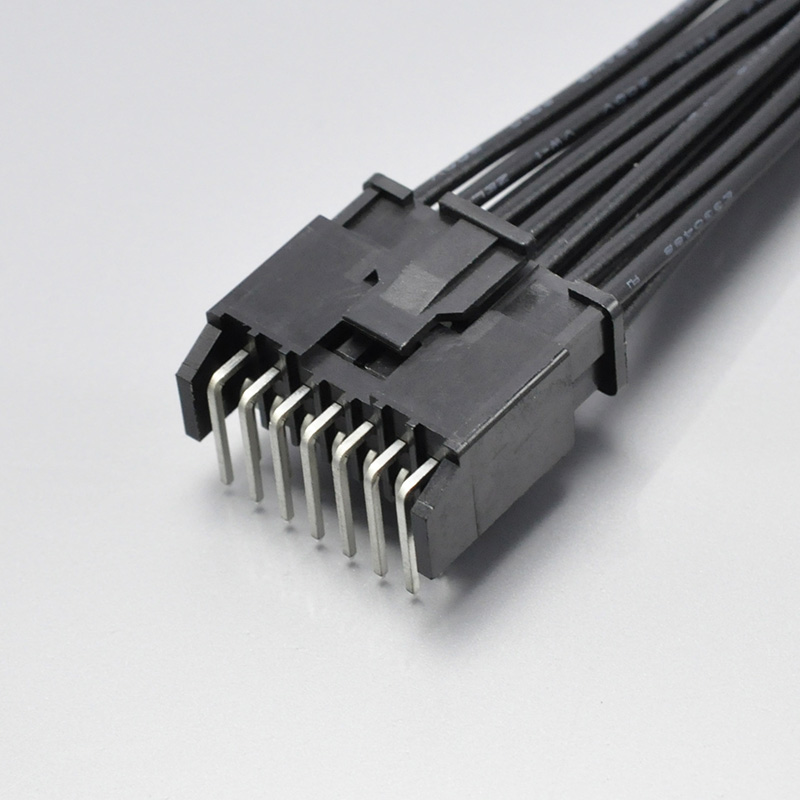

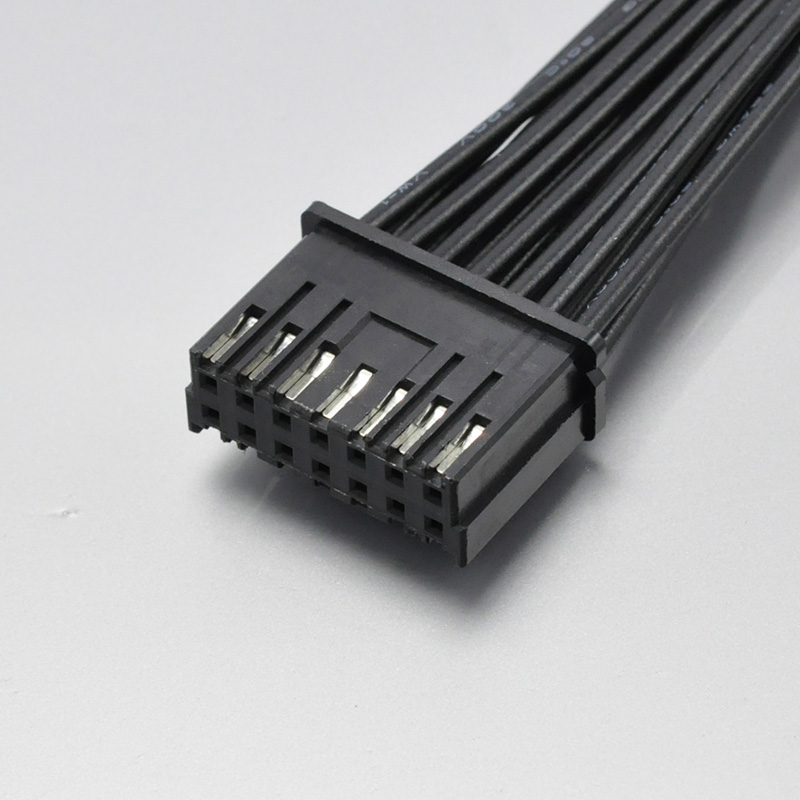

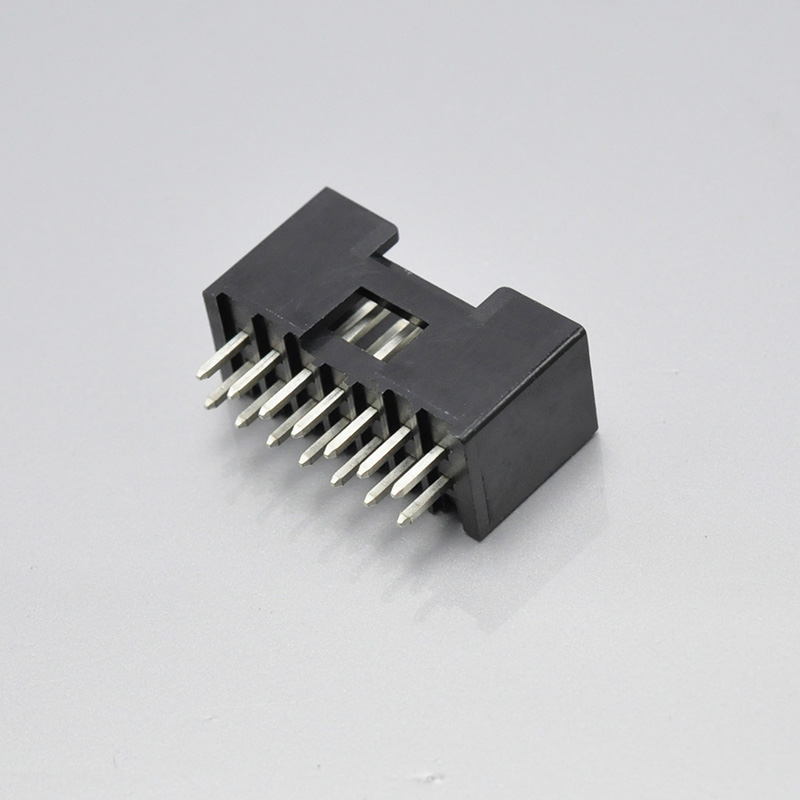

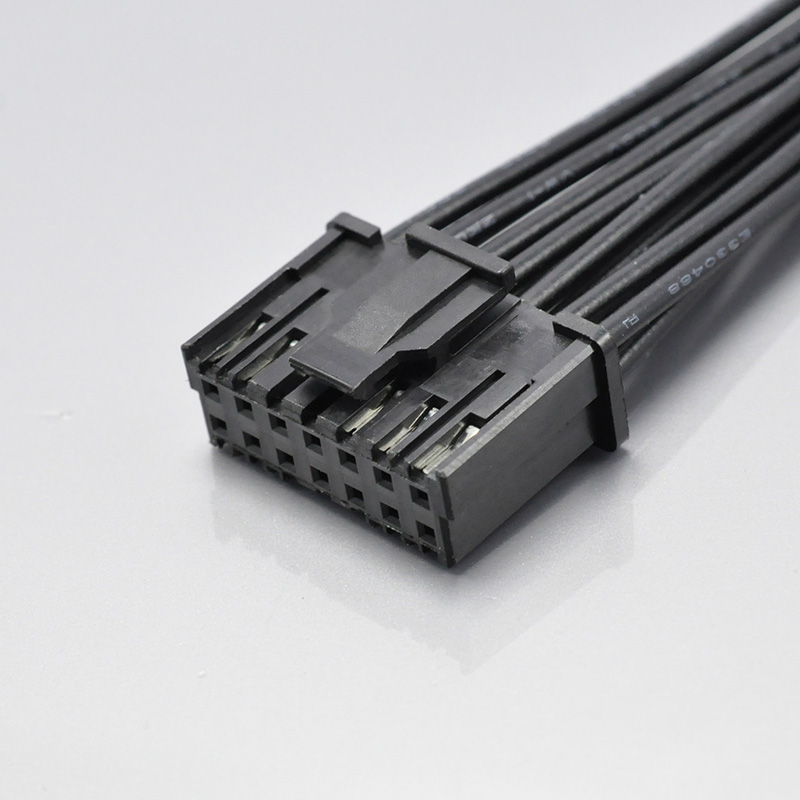

KR2548 Series Connectors

The KR2548 Series 2.54 Pitch Dual Row Connector is a high-performance, versatile connector product. Its 2.54mm pitch design ensures stable and reliable connections. With a high current rating of 3A AC/DC and a voltage rating of 250V AC/DC, this connector meets the diverse needs of various applications.

The KR2548 Series connectors feature a wide operating temperature range, functioning normally from -40°C to +105°C, making them suitable for various complex environments. Additionally, their maximum contact resistance is 20mΩ and minimum insulation resistance reaches 1000MΩ, ensuring superior electrical performance.

Overall, the KR2548 Series 2.54 Pitch Dual Row Connector has become an indispensable and important component in the electronics industry due to its excellent performance and stable quality.

Advantages

Stable and Reliable

The standard 2.54mm pitch design of this connector ensures a stable and reliable connection, reducing the risk of failure caused by poor or loose contact.

High Electrical Performance

With high current carrying capacity and excellent voltage tolerance, the KR2548 Series connectors can meet the needs of various complex electrical systems, ensuring complete signal transmission.

Wide Environmental Adaptability

The connectors have a wide operating temperature range and can operate normally in extreme environments from -40°C to +105°C, adapting to various complex environments and improving the reliability and durability of equipment.

Easy Installation and Maintenance

The KR2548 Series connectors are designed with user-friendliness in mind, making the installation and maintenance process easier and faster, reducing operational and time costs.

RoHS Compliant

Strictly adhering to RoHS standards, the product does not contain any harmful chemical substances exceeding RoHS restricted concentrations. This ensures the connector can be safely and stably processed at the high temperatures required for lead-free soldering during manufacturing, complying with environmental requirements while ensuring product reliability and durability.

In summary, the KR2548 Series 2.54 Pitch Dual Row Connector has become the preferred connection solution for many electronic equipment manufacturers due to its stable and reliable performance, high electrical performance, wide environmental adaptability, ease of installation and maintenance, and compliance with various standards.
